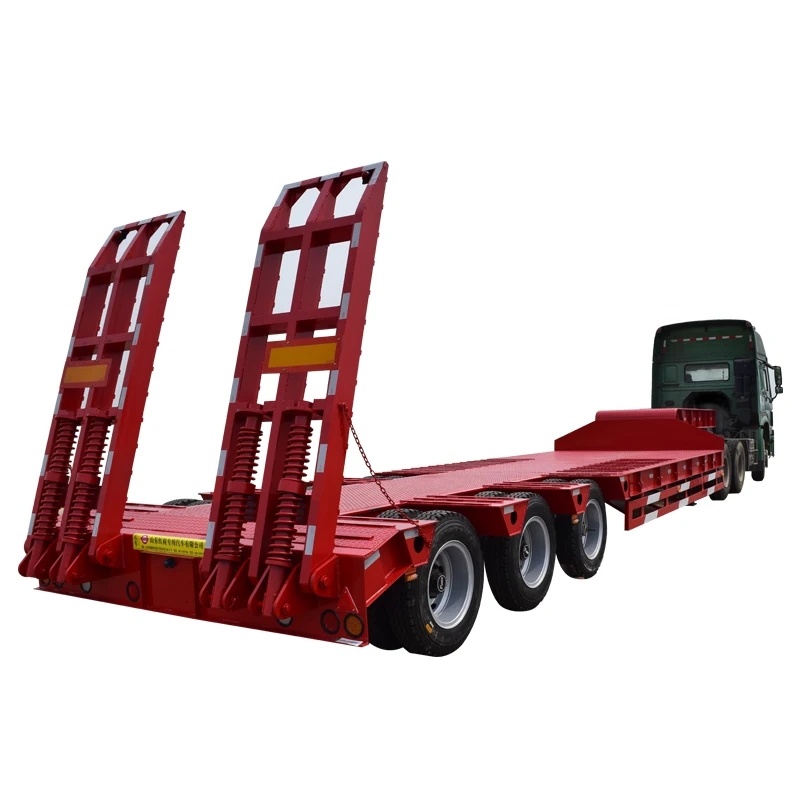

13m transportation heavy duty tri axle low bed semi trailer

13m Transportation Heavy Duty Tri Axle
  • Seller Shandong Hong He Special Truck Co., Ltd.
  • Min. Order 1 Set/Sets
  • FOB Price US $12000-15000 /Set

Product Description

3 axles heavy duty lowboy trailer low bed semi trailer for sale

Tare weight 9.0T-9.5T
Dimension 12950*2490*2900mm
Loading Capacity 40T-60T
Axle 3 axle FUWA 2180 13T
Rim 9.0-22.5 12PCS better brand
Tire 12R22.5 12CPS double coin
Suspension Mechanical suspension
King Pin JOST brand 2.0 or 3.5inch bolts typer or welding type
Support legs china brand 28T (Singe or double speed)
Main beam Upper plate is 16-20mm,middle plate is 10-12mm,down plate is 18-20mm Q345 steel
Side beam 20#-25# channel steel (material is Q235 steel)
FLoor 4-5MM chekered plate
Brake chamber WABCO RE6 relay valve:T30/30+T30 spring brake chamber,two pieces of 45L air tankes
ABS optional
Valve WABCO valve
Light LED light
Voltage 24V
TOOL box 1M*0.5M*0.5M one piece
Recepatacie 7 ways(7 wire harness)
Painting Complete chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint
