Agriculture Disk Harrow Blade / Disc

Agriculture Disk Harrow Blade Disc Harrow
  • Seller BROHAWK EXPORTS
  • Min. Order 500 Piece/Pieces
  • FOB Price US $4-50 /Piece

Product Description

Product Description

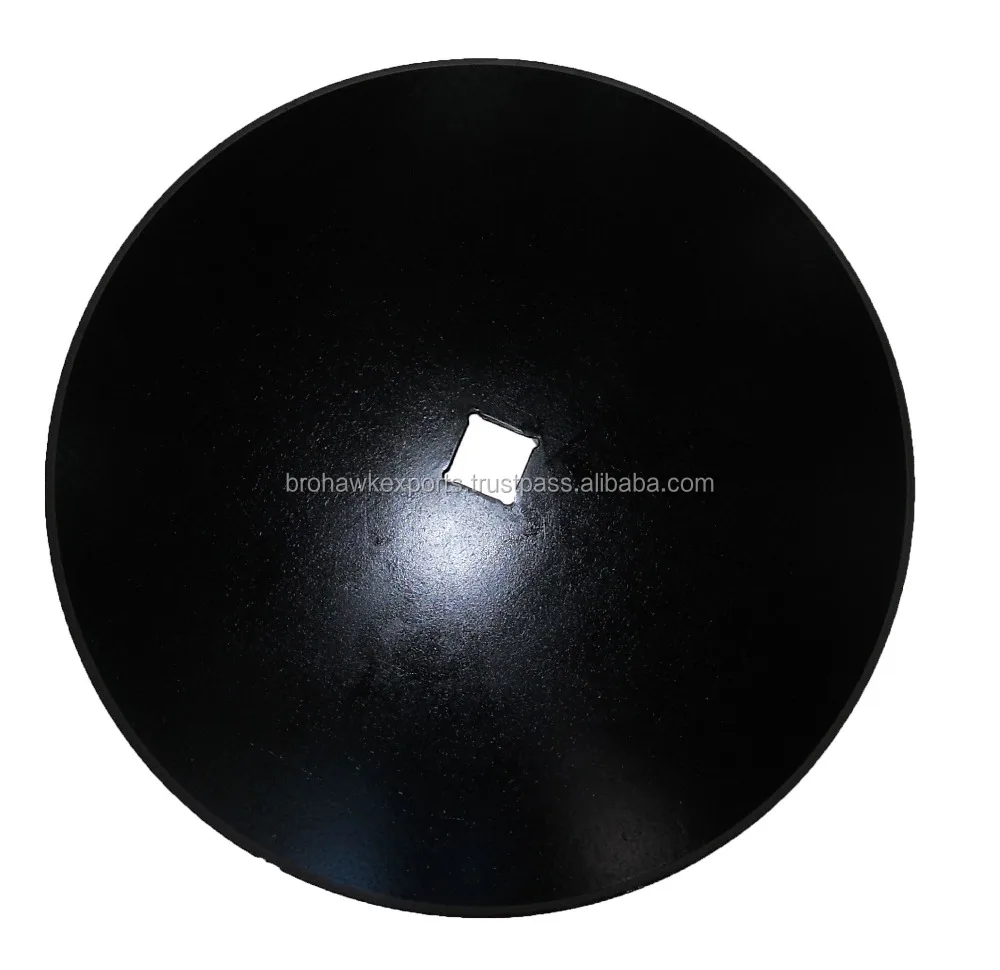

HARROW DISC

Our carbonsteel harrow discs are made from 65mn grade material and our boron steel discs are made from 30MnB5 grade. Our discs are made from the cross roll process which results in high efficiency and durability. We are manufacturing discs from 14" to 28" Dia with the thickness from 3mm to 8mm.

1. Spray painted

2. Smooth & Notched

3. Carbon Steel 65Mn

4. Born Steel (30 MN B5)

5. Hardness:-38 to 42 HRC in carbon Steel

6. Hardness :- 48 to 52 HRCi in Boron Steel

Harrow Disc Blade specifications:-

HARROW DISC SIZE

CONCAVITY

THICKNESS

SIZE

MM

INCH

MINIMUM

MAXIMUM

MM

406

16

38

42

3

457

18

46

50

3

457

18

46

50

3.5

508

20

60

64

3.5

558

22

69

73

4

558

22

69

73

4.5

558

22

69

73

6

609

24

81

85

4.2

609

24

81

85

4.8

609

24

81

85

5

609

24

81

85

6

660

26

103

107

6

660

26

103

107

7

660

26

103

107

8

711

28

113

117

6

711

28

113

117

7

711

28

113

117

8

Packaging & Shipping

100 pcs bundles

Company Information

Brohawk is currently manufacturing and exporting harrow discs and plough discs in Carbon Steel and Boron Steel with scores of sizes ranging from 16 inches to 28 inches in diameter and 2.5 mm to 8mm in thickness. To manufacture Harrow disc we use Carbon Steel EN 45 i.e equivalent to SAE 1070 grade and Boron Steel EN 10083 (30 MN B5) grade material. We maintain hardness of the Harrow disc from 38 to 42 HRC in Carbon Steel and 48 to 52 HRC in boron steel. We manufacture Harrow disc with centre hole square, round, hex, Octave or as per the drawing and specification of the buyers.
