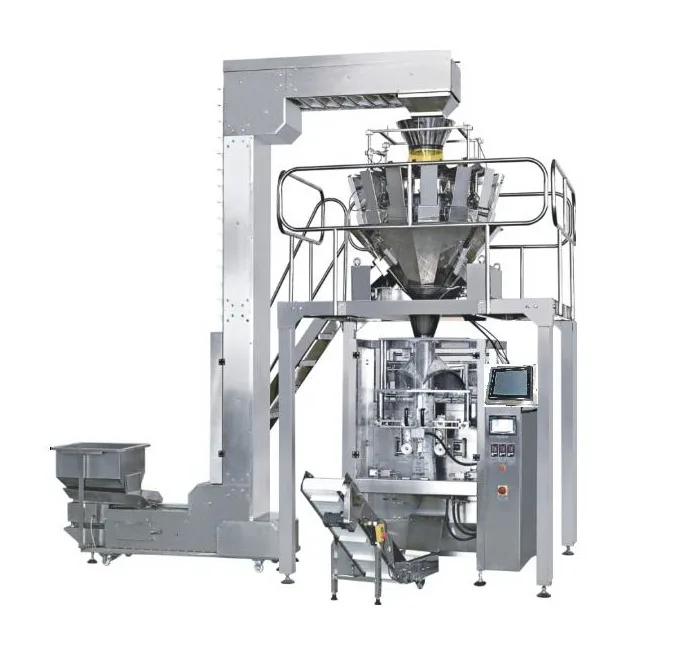

Automatic multihead weigher machine in packing system

Automatic Multihead Weigher Machine In Packing
  • Seller Foshan City Shunde Jingyi Intelligent Machinery Co., Ltd.
  • Min. Order 1 Set/Sets
  • FOB Price US $18000-25000 /Set

Product Description

automatic multihead weigher machine in packing system

1.Bucket elevator and vibration feeder:

The conveyer is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical industry, etc.

For the lifting machine, the hopper is driven by the chains to lift. It’s used for vertical feeding of grain or small block material. It has advantages of large lifting quantity and highness.

The height of lifting: 360cm (discharging height 310cm)or others can be made according to customer’s need.

Conveyor speed controlled by inverter. Bucket movement controlled by level sensor.

Max 90buckets/min

Power: 550W Voltage: 220V

Size: 3200x435x3650mm

2. JY-10HST multihead weigher:

Main Features

1) The most efficient and accurate weight calculation by computer.

2) Circle dump avoid materials drops together to avoid break and pile up

3) 10.1 inch touch screen with multiple languages.

4) Adjustable backlight control for vision protection

5) Compatible with single packaging machine for automatic weighing.

6) Instant hopper vibration index for better control.

7) 50 preset programs for multiple tasks.

8) Individual setting linear vibration amplitude

9) Templated motor drive, convenient for dismantling

Use range

Food: Snack, candy, sugar, beans, chips, frozen food, sticky food, salad, pet food…

Non food: small screws, buttons, nails, toys…

Weight range:

8g-1500g/dump

Max speed

60bags/min

Weight accuracy

±1g

Buckets

10 weighing buckets

Operate language

English, France, Spanish, Hungary, Germany, Finland….

Drive

By step motor

Power

1500W

voltage

110V, 220V, 50/60HZ

Net weight/gross weight

260kg/330kg

Machine size

95x95x100cm

Packing size

108X108X124cm

3. Platform: 170X195X170CM

4. JY-13 vertical packing machine :

Features:

Suit for: OPP/CPP, CPP/PE, MST/PE and other types of heat sealing film

The touch-sensitive screen can display the state of machine, operation in struction and the state of breakdown in either Chinese and English, easy operation

It has a compact structure and every component has been made carefully, and the touching part of material are made by stainless steel

For guaranteeing stable ling-term operation of the machine, electrical equipments and pneumatic equipments are all made by famous manufacturers of the world

The date printer has an alarming equipment of no ink belt, without escaping printing.

Specification:

Packaging speed: 5-60bag/min

Bag making size: (L)50-300mm (W)60-200mm

Bag making type: pillow bag, vertical bag and make hole equipment (need to add extra money)

Filling range: 150-1300ml

Max packaging film width: 440mm

Film thickness: 0.04-0.08mm

Air consumption: 200L/min

Total power/ voltage: 2.2KW/220V, 50-60HZ

Outside size: 1400X970X1600mm

Gross weight: 400kg

Application:

Grain, strip and slice materials such as expanded food, shrimp cracker, candies, peanuts and popcorns.


Package for grain materials such as rice, salt, jelly, mung bean oatmeal and laundry powder.

Function:

The design of this machine is reasonable and elaborate. Its performance is stable and it is easy to handle. It can cut the edge of every single bag or every several joint bags according to specific requirement. All proceedings of feeding, measure, bag-making, date printing, filling, puffing, sealing, cutting and outputting finished products are finished automatically.

5. Discharge conveyor:

Feeding speed

30m/minute

dimension

2110×340×500mm

Voltage

220V/45W

Packing size

179x48x53cm

Net weight

60kg

Gross weight

85Kg

6.Finished turntable:

Made by 304 stainless steel

Diameter:100-120CM

Height: 70-80cm (with the leg, so can adjust the height)

Speed: adjustable, controlled by governer

Power:’ 220V. 60W

Max speed: 14turns/min
