Food beverage Kiwi concentrate powder filling machine

Food Beverage Kiwi Concentrate Powder Filling
  • Seller Shanghai Rutian Package Equipment Co., Ltd.
  • Min. Order 1 Set/Sets
  • FOB Price US $6000.00-6000.00

Product Description

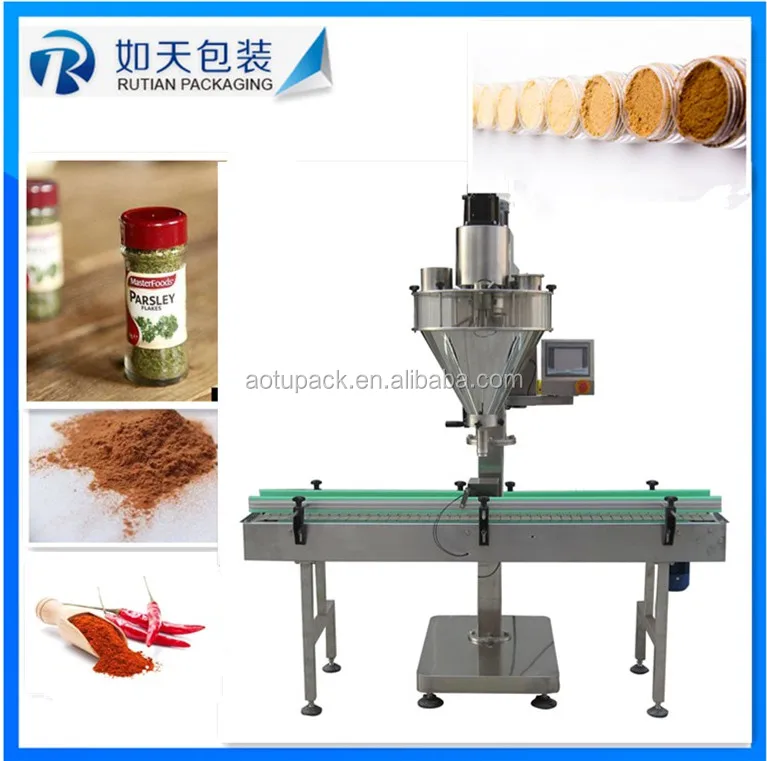

Food beverage Kiwi concentrate powder filling machine

I. Product Introduction:

RT-PF-A11 Auger filler machine is our main product, used to fill powder or granules (with Dia. less than 5mm) into bottles/bags. This machine control filling amount by a unibody lathed auger. With advanced control system and some spare parts, it suits for all variety powder,and well guarantee its filling accuracy.

II. Characteristic:

• When filling,the bottles stands on an online weight sensor, PLC will adjust the filling speed according to the weight given by sensor, which greatly improves the filling accuracy.

• The servo motor drives the platform moving, the filling speed is adjustable, no dust will come out with remover.

• The filling auger is driven by servo motor, working stable and fills in high accuracy.

• PLC and touch screen controlling system, with foot pedal switch, easy to operate.

• All stainless steel 304 material, quick-disconnection hopper, easy to clean and keep tidy.

• The height of auger filling head could be adjustable by rolling wheel, suitable for different bottle size.

• The auger is fixed tightly, won’t affect the character of material.

• Pneumatic device and other option device is available to suit different bottles.

III. Detailed Images:

IV. Technical Parameter:

Filling type

Volumetric measuring by auger

Hopper

25 L

Filling weight

1-500 g

Powder

0.93 KW

Filling accuracy

≤±0.5%

Weight

130 KG

Filling speed

15-40 times/min

Dimension

800*790*1900mm

V. Related Parts(together use with auger filler)

Turnplate for bottle unscrambler Dust Collector for powder splash

VI. About Us

More FAQ For Your Refer:

• I'm not sure if this machine can deal with our product?

following products are OK: dry powder, small granule diameter less than 5mm, free-flowing, non-wet, non-sticky, non-fragile.

• My capacity is small, any other options?

We have semi-automatic types for choice, with smaller capacity and lower cost.

• My container is bag / pouch / stand-up pouch, is this machine suitable?

semi-automatic types is good choice. Automatic bottle filler is different.

• My container is heavier than 5000g / lighter than 10g, any options?

This is not problem, kindly tell us the weight and picture of your product in inquiry, we could customized one for you.

• Is there any spare parts?

Spare parts when there is big weight range/ special powder characteristics / special containter / high accuracy request / etc..

• As a oversea buyer, I wonder if you could send us engineer for installation and maintenance?

The machines are test without problem before shipping. Just connect to power the machine will work.

We will always do our best to solve your problem whatever in one year warranty or not,

and you need not to pay for unnecessary in reasonable price.

• Are you a factory or agent?

We are an OEM, we always design and manufacture our products ourselves,

so we could provide satisfactory technical and after-sales service. You could pay a visit to our factory any time you like.

• How does your factory do regarding quality control?

Quality is priority! Every worker keeps the QC from the very beginning to the very end, all material we used are meet GB standard, skillful workers care every detail in handing each process,

Quality control department specially responsible for quality checking in each process.
